Special solution for storage areas, allowing safe storage of batteries, modules and cells
Products
We have reacted to the high demand caused by the success of the SafetyBATTbox in transportation, developing a solution for the storage sector, including all the safety features of the transport system.
The benefits for you and the functional principle:
| XL Storage | M Storage | L Storage | ||
| Exterior dimensions [mm] | 3196 x 2298 x 1237 | 1000 x 600 x 700 | 1604 x 1204 x 945 | |
| Interior dimensions [mm] | 2976 x 2039 x 757,5 | 816 x 416 x 306 | 1390 x 993 x 519 | |
| Empty weight [kg] | 1150 | 85 | 295 | |
| Maximum load [kg] | 1050 | 80 | 350 | |
| Housing material | Stainless steel | Galvanised steel | INOX steel |
Fire test
Find out about our storage containers:
Phone: +49 7153 925080 | Email: info@logbatt.de
Easy and quick to use in an emergency.
- Smoke filtration
- Loadable from the side
- Simple handling
- Collection tray with absorptive material
- Stackable
- Thermal insulation
- Optional accessories: Separating wall, Roller conveyor
SafetyBATTbox M Storage
Optional accessories:
SafetyBATTbox Storage family
is usable as a storage, quarantine and evacuation tank
- Safety container for storing small to large size lithium-ion batteries
- Thermal insulation
- Flue gas path and filter system
- Using absorbers to impound liquids such as electrolyte and cooling water
- Stackable 1 + 1
- Loadable at the front or from above
- Modular deployment
- Additional options:
+ Partitions
+ Roller conveyor or grid inside
+ Movable with: castors, pallet trucks or fork-lift trucks (only empty)
+ Sensor scanning
benefits of the LogBATT Storage family
- Flexible for cells, moduls and PHEV, BEV HV Li-ion-batteries
- Fire and projectiles remain in the box¹
- No extinguishing water needed
- Without extinguishing water, deployable as a retention device
- Flexibly deployable for production, workshops, trade, public authorities, institutes etc.
- Non-corroding
- Divisible (only for the XL box)
- One-person operation
- No maintenance
¹Additional packing material used for the tested versions
technical specification

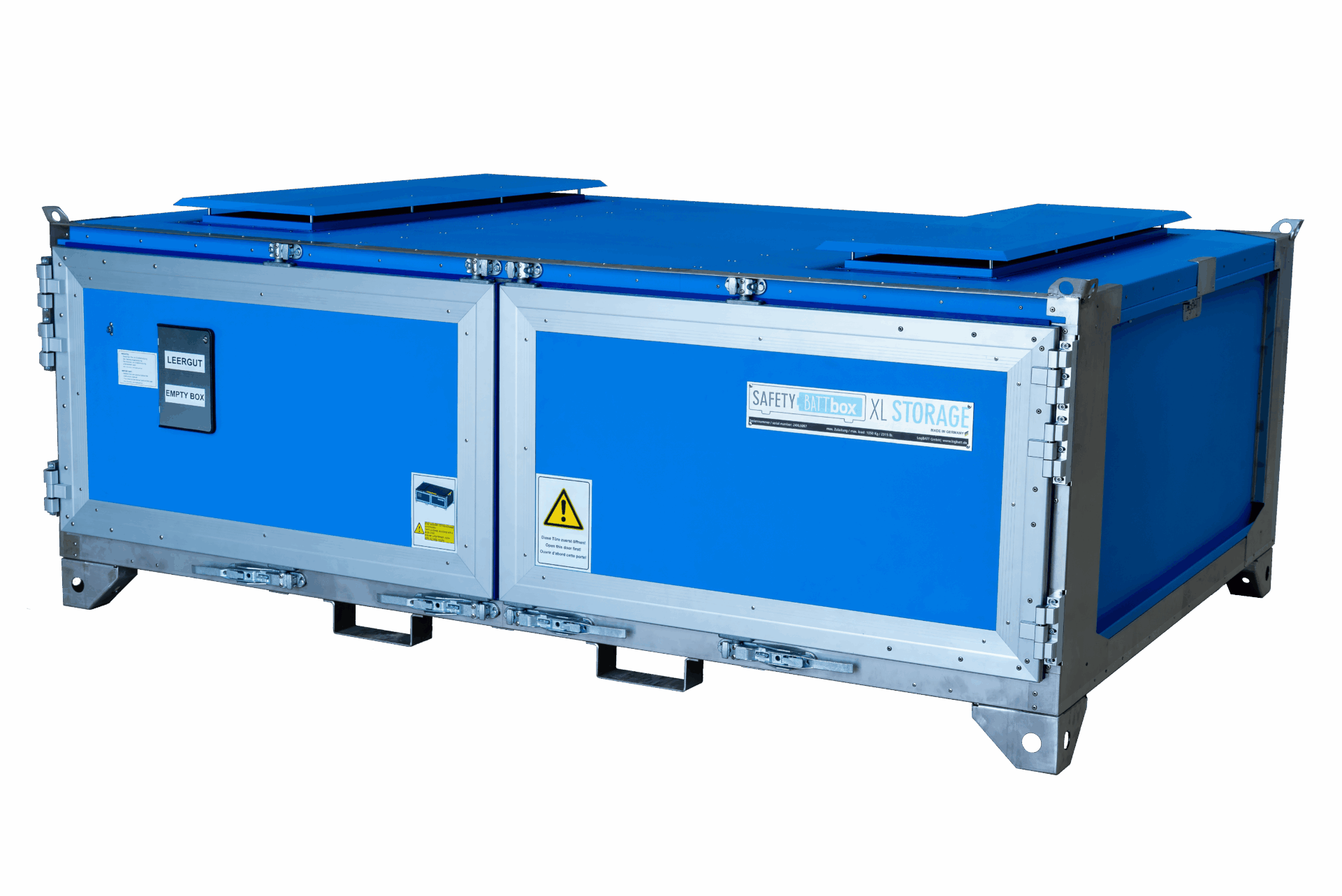

| SafetyBATTbox | XL Storage |
| External dimensions [mm] | 3196 x 2298 x 1237 |
| Internal dimensions [mm] | 2976 x 2039 x 757,5 |
| Unloaded weight approx. [kg] | 1150 |
| Housing | Stainless steel, galvanised, powder-coated |
| Gas management system | ✓ |
| Stackable | ✓ |
| Battery weight up to [kg] | 1050 |
| SafetyBATTbox | L Storage |
| External dimensions [mm] | 1604 x 1204 x 945 |
| Internal dimensions [mm] | 1390 x 993 x 519 |
| Unloaded weight approx. [kg] | 295 |
| Housing | Anodised aluminium, stainless steel, galvanised |
| Gas management system | ✓ |
| Stackable | ✓ |
| Battery weight up to [kg] | 350 |
| SafetyBATTbox | M Storage |
| External dimensions [mm] | 1000 x 600 x 700 |
| Internal dimensions [mm] | 816 x 416 x 306 |
| Unloaded weight approx. [kg] | 85 |
| Housing | Galvanised steel |
| Gas management system | ✓ |
| Stackable | ✓ |
| Battery weight up to [kg] | 80 |
